FITTINGS FORGED

Double Coupler - Standard

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1001	48.3 x 48.3	1.048	1.020	0.970

Fittings - Forged

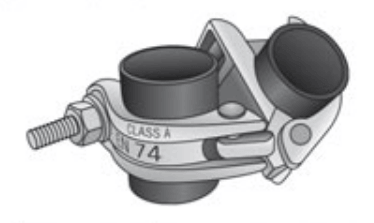

Swivel Coupler - Standard

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1002	48.3 x 48.3	1.170	1.150	1.100

Fittings - Forged

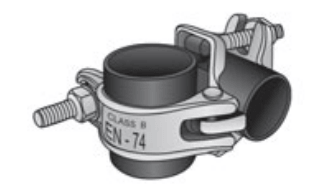

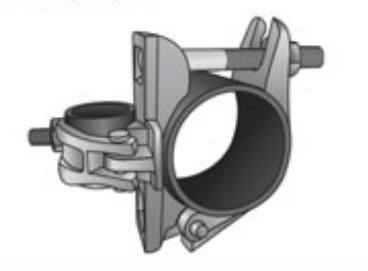

Combination Double Coupler

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1003	48.3 x 60.0	1.210	1.170	1.120

Fittings - Forged

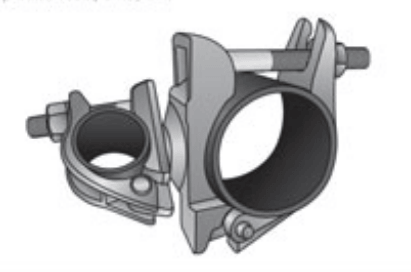

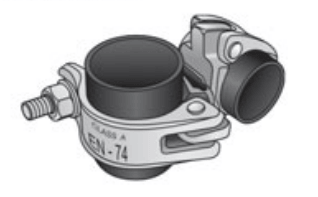

Combination Swivel Coupler

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1004	48.3 x 60.0	1.404	1.365	1.300

Fittings - Forged

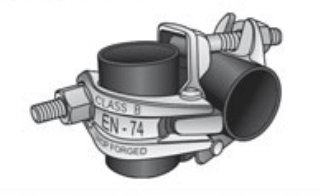

Oval Double Coupler

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1005	48.3 x 48.3	1.156	1.120	1.070

Fittings - Forged

Swivel Coupler - Standard

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1006	48.3 x 48.3	1.296	1.270	1.200

Fittings - Forged

Double Coupler with Eye Bolt

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1007	48.3 x 48.3	1.328	1.275	1.230

Fittings - Forged

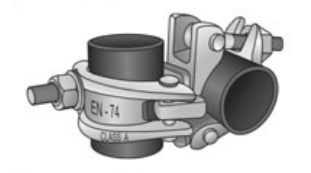

Swivel Coupler with Eye Bolt

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1008	48.3 x 48.3	1.415	1.380	1.310

Fittings - Forged

Half Swivel Coupler

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1009	48.3	0.572	0.550	0.530

Fittings - Forged

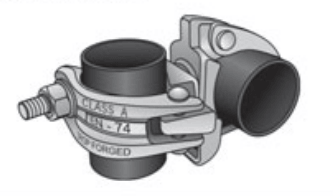

Oval Half Swivel Coupler

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1010	48.3	0.648	0.630	0.600

Fittings - Forged

Half Swivel Coupler with Ledger Blade

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1011	48.3	1.021	0.990	0.945

Fittings - Forged

Oval Half Swivel Coupler with Bolt

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1012	48.3	0.724	0.720	0.670

Fittings - Forged

Putlog Coupler

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1013	48.3 x 48.3	0.700	0.670	0.653

Fittings - Forged

Gravloc Coupler

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1014	48.3	1.530	1.480	1.460

Fittings - Forged

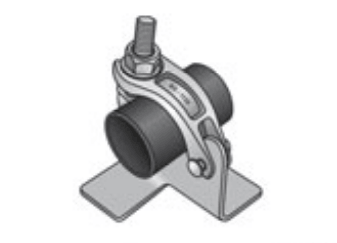

Board Retaining Clamp

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1015	48.3	0.750	0.710	0.690

Fittings - Forged

Toe Board Coupler

Material : SAE-1010

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1016	48.3	1.118	1.160	1.100

Fittings - Forged

Combination Double Coupler

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1017	48.3 x 89.0	2.651	2.538	2.500

Fittings - Forged

Combination Swivel Coupler

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1018	48.3 x 89.0	2.810	2.690	2.650

Fittings - Forged

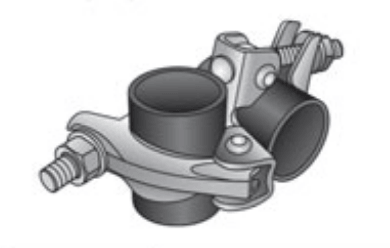

Double Coupler -Normal Sheet 5T

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1019	48.3 x 48.3	0.972	0.945	0.900

Fittings - Forged

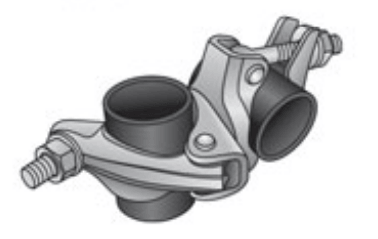

Swivel Coupler - Normal Sheet 5T

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1020	48.3 x 48.3	1.134	1.103	1.050

Fittings - Forged

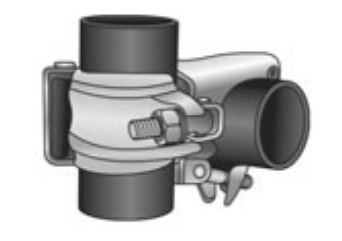

Double Coupler - Korean

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1021	48.3 x 48.3	0.724	0.704	0.670

Fittings - Forged

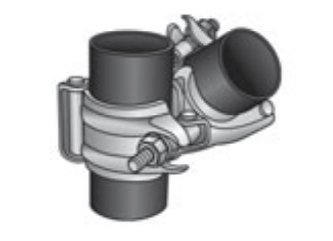

Swivel Coupler - Korean

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1022	48.3 x 48.3	0.756	0.735	0.700

Fittings - Forged

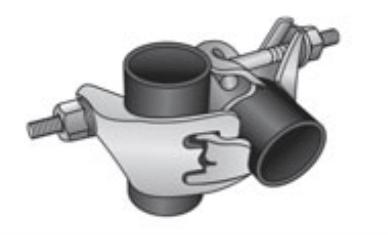

Double Coupler - European

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1023	48.3 x 48.3	-	-	-

Fittings - Forged

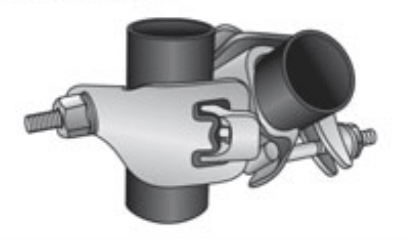

Swivel Coupler - European

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1024	48.3 x 48.3	-	-	-

Fittings - Forged

Half Swivel Coupler

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1025	48.3	0.486	0.473	0.450

Fittings - Forged

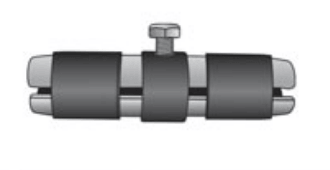

Joint Pin

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1026	48.3	0.886	0.861	0.820

Fittings - Forged

Putlog Coupler

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1023	48.3 x 48.3	0.670	0.650	0.620

Fittings - Forged

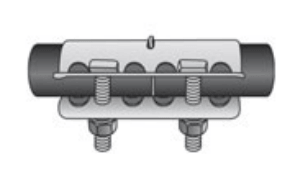

Sleeve Coupler

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1028	48.3	1.156	1.124	1.070

Fittings - Forged

Gravloc Coupler

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1029	48.3	1.555	1.512	1.440

Fittings - Forged

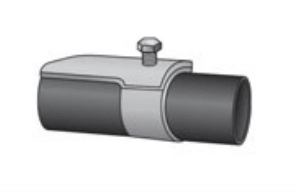

Putlog Adapter

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1030	48.3	-	-	-

Fittings - Forged

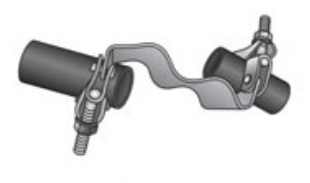

Roof Coupler

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1031	48.3 x 48.3	1.523	1.481	1.410

Fittings - Forged

Staircase Coupler

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1032	48.3	1.696	1.649	1.570

Fittings - Forged

Fencing Coupler

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1033	48.3 x 48.3	0.583	0.567	0.540

Fittings - Forged

Single Wedge Clamp

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1034	48.3	0.767	0.746	0.710

Fittings - Forged

Ladder Clamp

Material : S-235

Finishes : Hot Dip Galvanized / Zinc / Self

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip	Zinc	Self
SGI-1035	48.3	0.540	0.525	0.500

Fittings - Forged

Universal Clamp with Bolt

Material : S-235

Finishes : Painted / Self

Code	Sheet Thickness (mm)	Bolt (mm)	Weight (kg)
Code	Sheet Thickness (mm)	Bolt (mm)	Painted	Self
SGI-1036	5	130	0.593	0.570

Fittings - Forged

Double Wedge Clamp

Finishes : Hot Dip Galvanized

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip
SGI-1037	48.3 x 48.3	1.520

Fittings - Forged

Swivel Wedge Clamp

Finishes : Hot Dip Galvanized

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip
SGI-1038	48.3 x 48.3	1.720

Fittings - Forged

Combination Double Wedge Clamp

Finishes : Hot Dip Galvanized

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip
SGI-1039	42.0 x 48.3	1.450

Fittings - Forged

Combination Swivel Wedge Clamp

Finishes : Hot Dip Galvanized

Code	For Tube OD (mm)	Weight (kg)
Code	For Tube OD (mm)	Hot Dip
SGI-1040	42.0 x 48.3	1.650

Fittings - Forged
